Identifying Coaxial Cable Connectors

Identifying Coaxial Cable Connectors

Thurs, 22/4/2015

SMA, SMB, TNC, RP-SMA, RP-TNC, 7/16 connector, N type, N type, MMCX, MCX , 1.0/2.3, HN, FME, SMC

 It can be quite confusing to specify connectors particularly when they can be "reverse polarity" . or "reverse gender". In the good old days, before some bright spark decided to introduce RP types there were just two types of SMA and other similar connectors. The plug had a male pin and the jack had a female pin. Too easy. The reverse SMA plug, RP-SMA plug,  instead, has a female pin (4th pic down) and the reverse SMA jack has a male pin (3rd pic down). Unfortunately there seems to be an increasing tendency to refer to the RP-SMA plug as "RP-SMA male". We use the term RP-SMA plug female pin , because, from what we know of sex, there are no male elements at all in RP-SMA plugs.



RF Connectors Overview



SMA Connector, Plug, Conventional

male pin

SMA3xxx-yyyy

(yyyy describes cable type

eg 0316 =RG316, 0058 =RG58)

SEE ITEMS ON CART


SMA Connector,Jack, Conventional
female pin

SMA8xxx-yyyy

SEE ITEMS ON CART


RP-SMA Connector, jack

male pin

SMA9xxx-yyyy

SEE ITEMS ON CART


RP-SMA Connector, plug

female pin

SMA6xxx-yyyy

SEE ITEMS ON CART


TNC Connector, Conventional, Plug

Male Pin

TNC3xxx-yyyy

SEE ITEMS ON CART


TNC Connector, Conventional, jack

female pin

TNC8xxx-yyyy

SEE ITEMS ON CART


RP-TNC Connector, Jack

Male pin

TNC9xxx-yyyy

SEE ITEMS ON CART


RP-TNC Connector, Plug

female pin

TNC6xxx-yyyy

SEE ITEMS ON CART


BNC Connector , Plug

Conventional (shown) has male pin

BNC3xxx-yyyy
SEE ITEMS ON CART

RP has female pin

BNC6xxx-yyyy
SEE ITEMS ON CART


BNC Connector jack

Conventional (shown) has female pin

BNC8xxx-yyyy
SEE ITEMS ON CART

RP has male pin

BNC9xxx-yyyy
SEE ITEMS ON CART



mmcxm.jpg  rp-mmcxf.jpg

 MMCX Connector, plug

Conventional (left) has male pin
MMCX3xxx-yyyy
SEE ITEMS ON CART

RP (right)  has female pin
MMCX6xxx-yyyy
SEE ITEMS ON CART


MMCX Connector, jack

Conventional has female pin
MMCX8xxx-yyyy
SEE ITEMS ON CART

RP has male pin
MMCX9xxx-yyyy
SEE ITEMS ON CART


N Connector,  plug

Conventional  (shown) has male pin
N3xxxx-yyyy
SEE ITEMS ON CART

RP has female pin
N6xxxx-yyyy
SEE ITEMS ON CART


N Connector, jack

Conventional (shown) has female pin
N8xxxx-yyyy
SEE ITEMS ON CART

RP has male pin
N9xxxx-yyyy
SEE ITEMS ON CART


MCX Connector, plug

Conventional (shown) has male pin
MCX3xxxx-yyyy
SEE ITEMS ON CART

RP has female pin
MCX6xxxx-yyyy
SEE ITEMS ON CART


MCX Connector, jack

Conventional (shown) has female pin
MCX8xxxx-yyyy
SEE ITEMS ON CART

RP has male pin
MCX9xxxx-yyyy
SEE ITEMS ON CART


SMB Connector Plug

Conventional (shown) has female pin
SMB3xxxx-yyyy
SEE ITEMS ON CART

RP has male pin
SMB6xxxx-yyyy
SEE ITEMS ON CART


SMB Connector jack

Conventional (shown) has male pin
SMB8xxxx-yyyy
SEE ITEMS ON CART

RP has female pin
SMB9xxxx-yyyy
SEE ITEMS ON CART


MC Connector

Plug

MC3xxx-yyyy
SEE ITEMS ON CART

male pin


FME Connector, jack, female pin

FME8xxxx-yyyy
SEE ITEMS ON CART

 MC-RA.jpg    FME Connector, plug, male pin

FME3xxxx-yyyy
SEE ITEMS ON CART



 1.0/2.3 Connector

 SEE ITEMS ON CART



 HN Connectors

 SEE ITEMS ON CART (1)

 SEE ITEMS ON CART (2)


SMC Connector

 SEE ITEMS ON CART




Fakra  Connector

 SEE ITEMS ON CART




K  Connector

 SEE ITEMS ON CART




BMC  Connector

 SEE ITEMS ON CART




Mini BNC  Connector

 SEE ITEMS ON CART



Mini UHF  Connector

 SEE ITEMS ON CART




SSMA  Connector

 SEE ITEMS ON CART




             SSMB  Connector

           SEE ITEMS ON CART



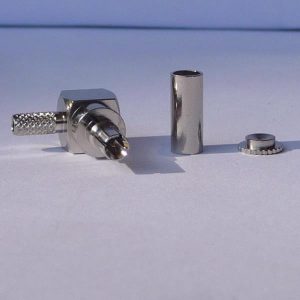

             TS9  Connector

           SEE ITEMS ON CART



                  UFL Connector
              SEE ITEMS ON CART



                  UHF  Connector
                SO239, PL259


              SEE ITEMS ON CART



            RCA  Connector

            SEE ITEMS ON CART



             F  Connector

            SEE ITEMS ON CART



             SMP  Connector

            SEE ITEMS ON CART
